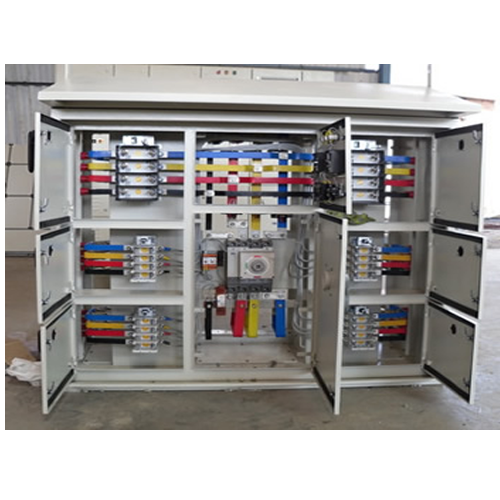

PDB Panel

At Panchal Switchgears, we are committed to providing high-quality PDB panels that bring these advantages to your electrical systems.

Home / PDB-Panel

about us

About Us: Panchal Switchgears - PDB Panel Solutions


Welcome to Panchal Switchgears, where innovation meets reliability in electrical solutions. As a leading name in the industry, we specialize in manufacturing and supplying top-notch Power Distribution Board (PDB) panels. Our commitment to excellence and customer satisfaction drives us to deliver products that not only meet but exceed industry standards.


    Why Choose Panchal Switchgears?

  • Quality Assurance: We adhere to strict quality control measures to ensure that every PDB panel we produce meets the highest standards.

  • Expertise: Our team of experienced engineers and technicians brings a wealth of knowledge and expertise to every project.

  • Customer-Centric Approach: We prioritize our clients' needs, offering customized solutions and exceptional after-sales support.
  • Innovative Solutions: We stay ahead of the curve with continuous innovation, incorporating the latest technological advancements into our products.

    • A Power Distribution Board (PDB) panel is an essential component in any electrical system, responsible for distributing electrical power from a main source to various circuits within a facility. It ensures the safe and efficient management of electrical loads, protecting your equipment and ensuring smooth operations.


How to Operate a PDB Panel: A Guide by Panchal Switchgears

Operating a Power Distribution Board (PDB) panel is crucial for ensuring the efficient and safe distribution of electrical power within your facility. At Panchal Switchgears, we prioritize safety and ease of use in our PDB panel designs. Here’s a step-by-step guide to help you operate a PDB panel effectively.


  1. Initial Inspection:

    • Visual Check: Inspect the PDB panel for any visible signs of damage or wear. Ensure that all components are securely mounted and that there are no loose connections.
    • Environment Check: Verify that the surrounding area is clean, dry, and free from any obstructions or combustible materials.

  2. Power On/Off Procedure:

    • Ensure that all circuit breakers and switches are in the 'OFF' position.
    • Gradually switch on the main power supply to the PDB panel.
    • Switch off the main circuit breaker last to ensure a safe power-down procedure.
    • Turn off all branch circuit breakers first.

  3. Load Management:

    • Monitor the load distribution to ensure that no circuit is overloaded. Use the panel’s metering and monitoring features to check current and voltage levels.
    • If an overload is detected, switch off the affected circuit and redistribute the load if possible before turning it back on.

  4. Troubleshooting:

    • TIn case of a fault, switch off the relevant circuit immediately.
    • Use the panel’s diagnostic tools to identify the problem. Common issues might include tripped breakers, blown fuses, or signs of electrical faults.

Advantages of PDB Panels

  1. Improved Safety
  2. Efficient Power Distribution
  3. Improved Maintenance
  4. Scalability and Flexibility
  5. Cost-Effectiveness
  6. Compliance with Standards
